執行標準
本產品按照GB/T5023.1-7- -2008, JB/T8734.1-6- 2016 (等同采用IEC60227:2007 )制造。
使用特性
該類產品中B系列產品適用于交流額定電壓450/750V及以下的動力裝置固定敷設用，R系列產品使用與交流額定電壓450/750V及以下的家用電器、小型電動工具、儀器、儀表及動力照明銅芯聚氯乙烯絕緣連接軟電纜(電線)。
Executive Standard
The product is manufactured based on GB/T standard 5023.1-7-2008, JB/Tstandard 8734. 1-6-2016, (the same as IEC 60227:2007).
Using Features
B series are used for fixed laying in A.C. engine devices, the rated voltageis 450/750V or lower; R series are used for household electrical appliance,small electrical tools, instruments and engine lighting ofA.C. the ratedvoltage is 450/750V or below.
使用條件
正常使用溫度時: BV-90、RV-90型號導體最高溫度為90公， 其他型號為70℃。
規格結構及技術參數
符合GB/T 5023-2008和JB/T 8734-201 6規格參數。
交貨長度
產品交貨長度按雙方協定，計量誤差允許不超過0.5%。
Using Conditions
The working temperature of BV-90 and RV-90 cables should be not higher
than 90 ℃, other type of cables should be not higher than 70℃.

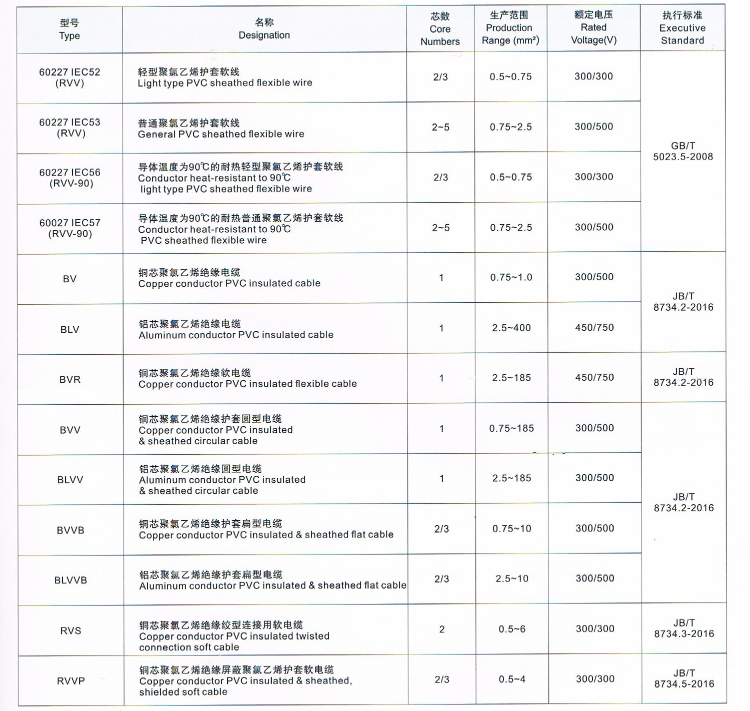

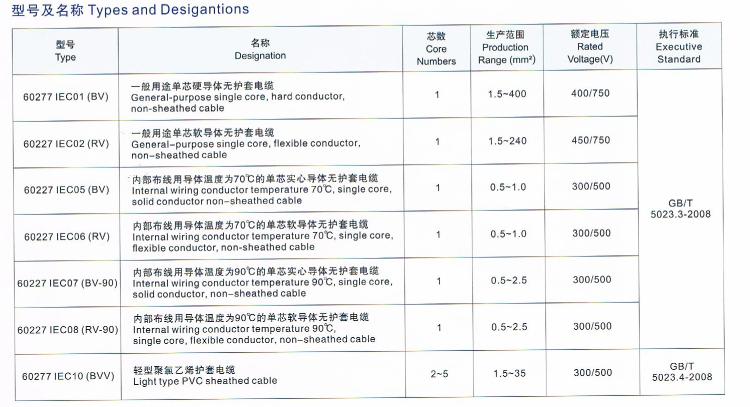

Specification & Technical Parameters
According with stipulations in GB/T standard 5023-2008 & JB/T standard8734-2016.
Delivery Length
Delivery lengthis decided by the slle and buyer, the length deiationisnot more than +0.5%.
